About the ozone
Ozone is the most oxidizing substance in nature. It can react with most reducing substances. When applied to water treatment, the ozone produced by the ozone machine can be fully mixed with water through a gas-liquid mixing pump or a jet. At this point, the depth of ozone in water can reach 4ppmm. We know that when the ozone concentration reaches 1ppm, the ozone water already has a strong sterilization capability. Therefore, the integrated ozonator produced by lanling water treatment equipment can be applied to high demand medical treatment, factory aquaculture and other aspects.
Overview
Integrated ozone generator is a kind of high efficiency ozone generator which integrates oxygen generator, cooling dryer, air compressor, water cooling system and so on. It's an upgraded version of a regular ozone generator. Using pure oxygen as raw material, the ozone concentration is higher.
Product working principle
”SMURFAQUA" ozone generator use low power high pressure compressor to press air into oxygen generator. Oxygen machines produce pure oxygen at concentrations greater than 93 percent. The pure oxygen is then transported to the ozone-producing tube, where it is processed by a high voltage discharge and becomes the ozone of three oxygen atoms. At this point, the ozone concentration can reach 100mg/L.
The ozone generator produced by lanling water treatment will pass professional standard test before it leaves the factory:
https://v.qq.com/x/page/k0160h5y991.html
“SMURFAQUA" brand ozone generator technology advantages
1.The shell is made of 304 stainless steel, with a longer life. Set the height of the panel to match the ergonomic debugging;
2. The gas pipelines are made of ferrofluorone material, which is resistant to oxidation, and the service life is longer.
3. The functions of oxygen generator, oxygen generator and ozone generator can be flexibly switched. Suitable for aquaculture. Oxygen is used to add oxygen to water and ozone is used to sterilize it.
4. Internal water cooling system. An inlet and outlet pipe is provided to cool the ozone-producing pipe to ensure that the temperature of the ozone-producing pipe does not exceed 100 degrees Celsius. On the one hand, the stability of ozone concentration can be ensured, on the other hand, the life of ozone generator tube can be effectively guaranteed.
Applications in water treatment
Ozone water can not only kill viruses and bacteria in water quickly. It can also react with nitrogen and nitrite in water at high concentration. Therefore, it is especially suitable for pretreatment of water treatment, such as sewage treatment, using ozone to reduce COD. In aquaculture, ozone can be used to disinfect and sterilize the water in the reservoir, quickly and thoroughly, without harmful residue. Oxygen after ozone decomposition can effectively increase the amount of dissolved oxygen in water, which is of great benefit to increase the density of aquaculture and the efficiency of aquaculture.
Range of application
Medical equipment, material disinfection, food factory raw materials disinfection sterilization, aquaculture, bucket water plant, Marine aquarium engineering, swimming pool sauna water treatment, cosmetics water pretreatment.
Industrial circulating water aquaculture is an inevitable trend. The strong oxidation and non-residue of ozone can replace most of the former disinfectants:
Shrimp breeding needs to avoid the invasion of the virus from the source, ozone sterilization is the best choice:
For large water tank plant, it is necessary to use ozone generator to carry out strict disinfection of water:

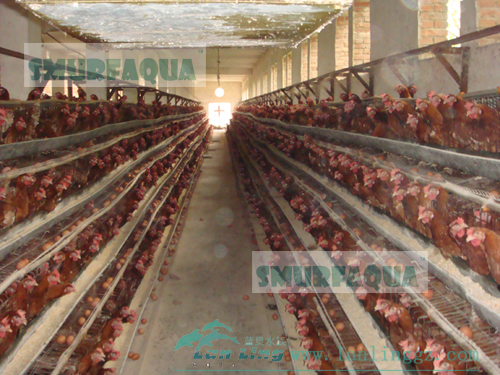

Farm space disinfection and epidemic prevention, use ozone generator disinfection, thorough and fast, and no residue:
The water in the swimming pool is sterilized with chlorine preparation. The residue is irritating to human skin and remains for a long time. After sterilization with ozone, only oxygen is available and decomposition is rapid:
Large integrated ozone generator in factory aquaculture:
Integrated ozone generator and protein separator are used together in the seafood transient system:

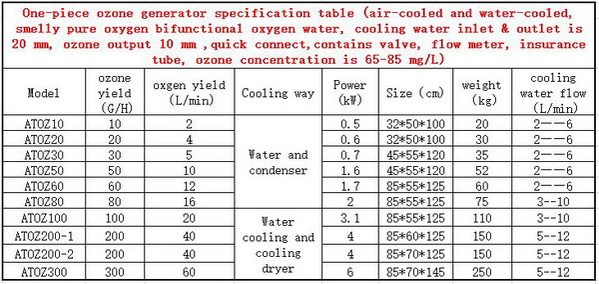

Specification
Related video
https://v.qq.com/x/page/o06749lpo3q.html
