Ozone generator

  • water cooling ozone machine
water cooling ozone machine

water cooling ozone machine

  • Sterilization quickly
  • The production convenient
  • No harmful residue
  • The cost is low
  • Product description: Water cooled ozone machine is outside of the ozone generator tube with a layer of water cooling device, can guarantee the ozone machine at work, the stability of ozone generating, at the same time, ca
  • INQUIRY
Brief introduction of ozone
Ozone is the second most powerful substance in natural oxidation. It's made up of three oxygen atoms. The structure of the covalent bond makes it very unstable, and it's easy to "grab" electrons from other materials and make itself stable. Therefore, it has strong oxidation property. Because of this characteristic, it can destroy the cellular surface structure of most living things. For microbes, ozone can easily destroy its DNA molecules, making them impossible to reproduce. Finally, the purpose of sterilization is achieved.

Ozone can not only kill microorganisms easily, but also can reduce the majority of the material reactions. Therefore, we can use it to reflect away the formaldehyde, hydrogen sulfide and other harmful gases in the air. When applied to water treatment, ozone can be dissolved in water with certain equipment to make ozone water, which can not only react with BOD/COD in water quickly, but also passivate or decolor in a short time. It can also kill algae, bacteria, viruses, chlamydia and other microorganisms in water. Discharge sewage to the standard. After the decomposition of ozone into oxygen, can increase the amount of dissolved oxygen in water, suitable for the growth of aquatic organisms.


Principle and structure optimization of ozone generator
At present, the most economical method of ozone production is corona discharge. However, the continuous high voltage discharge will cause the temperature of the ozone-producing tube to rise sharply. In view of the characteristics that ozone decomposes when it is heated, the overheated ozone-producing tube will cause a large amount of ozone-producing at the same time. Thus the ozone machine produces extremely low or even zero ozone concentration. In this way the ozone machine loses its function.

In order to make up for this defect, lanling water treatment equipment developed water-cooled ozone-generating tube. When it works, there is water flowing slowly through the ozone tube, and external water is used to cool the ozone generator tube. This ensures that the temperature of the ozone generator never exceeds 100 degrees Celsius. Not only that, but it will also greatly increase the life of ozone-producing tubes.




Precautions for use

This type of ozone machine USES air as the raw material to produce ozone. The air output concentration can reach 20mg/L. When oxygen is used as a gas source, the ozone output concentration can reach 100mg/L. Under the support of water cooling and air cooling, it can work continuously without interruption.

When used in water treatment, ozone and water mix play a very important role. It is recommended to use the microbubble generator or protein separator together with the ozone machine to avoid wasting ozone.

Ozone water may have potential adverse effects on open fish seedlings or open shrimp seedlings. Therefore, after the use of ozone in aquaculture to disinfect water, a reservoir should be established. Let the water sit for a while before using it. If there is no reservoir, the water can be sterilized by ultraviolet sterilizer.

The use place of water-cooled ozone machine

Water-cooled ozone machines are commonly used in ozone machines that require long periods of uninterrupted operation. Such as large water treatment disinfection, water plant disinfection sterilization sterilization, food plant disinfection, aquaculture water sterilization and epidemic prevention. Large sewage treatment plant, printing and dyeing factory, chemical plant, large circulating water farm, large bottled water canning production line, water plant, food plant, chemical plant, large pool water treatment project.

High density seafood can degrade ammonia and nitrite effectively after using ozone machine temporarily, and water quality becomes clearer:


The food factory use ozone sterilization, no residue, sterilization thorough, fast:


When the ozone machine is used in the project of aquatic aquarium or pool simming, it has good anti-epidemic effect, clear water quality and better viewing effect:


When aquaculture of factory change aquaculture, disinfect with ozone, remain time is short, disinfect quickly, thorough. Prevent water from carrying viruses, bacteria and harmful algae, and increase dissolved oxygen in water:


In sewage treatment, the strong oxidation of ozone can rapidly reduce COD. Water quality standard discharge:


It is more convenient for poultry farms to disinfect with ozone machines and more thorough disinfection:

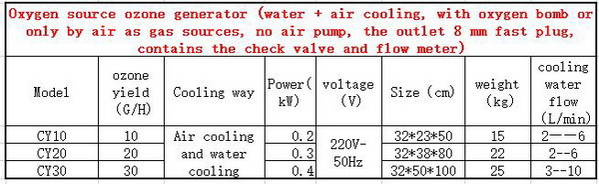

Specification
