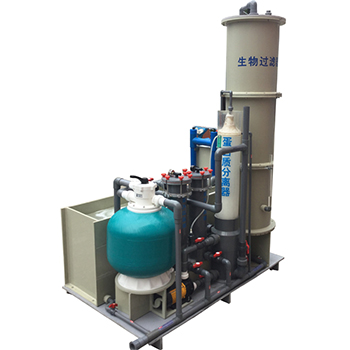

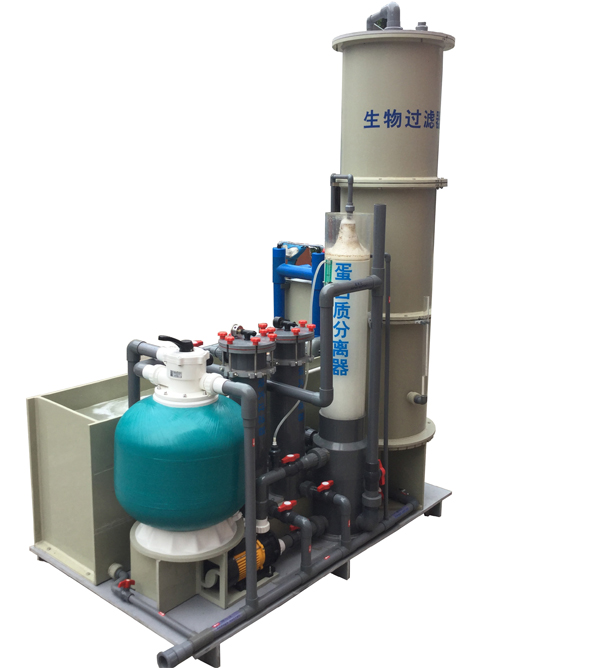

complete RAS

High density circulating aquaculture system

Integrated system, no installation
Optimize the design, the overall energy consumption is small
Land saving
Global mobility
Product description: A set of ultra-high density aquaculture water treatment system is formed by integrating filters, sterilization equipment, thermostat equipment and oxygen enrichment equipment. Easy to move, low energy
INQUIRY

Circulating water treatment system equipment is a way of environmental water treatment. With the rapid development of industry, a large number of industrial aquaculture projects, municipal sewage and pool projects need to be recycled and comprehensively used. In order to achieve the goal of low carbon emission reduction. For many years, lanling water treatment equipment has focused on the development and production of circulating water treatment equipment, especially aquaculture related circulating water treatment equipment. I have accumulated rich experience in the design of related systems and the improvement of equipment.

The circulating water system usually deals with a large number of solid suspended solids or dissolved substances, which will be decomposed into ammonia, nitrite, hydrogen sulfide and other toxic substances to aquatic animals under the action of bacteria after being discharged into the aquaculture water. Therefore, it is the function of the circulating water treatment system to capture these pollutants in the first place and turn them into treasures as much as possible.

The circulating water treatment system first includes mechanical filtration. These devices filter out the solid suspended matter in the water in the first place. The equipment often used is protein separator, microfilter, precision filter and other equipment. Secondly, the circulating water treatment system also has biochemical filtration equipment. These devices are designed to grow microbes to break down and isolate dissolved substances in water. For example, in an environment of 15-30 degrees, nitrifying bacteria will convert the toxic substances such as ammonia nitrogen accumulated in water into non-toxic nitrate. Once the conditions created by other devices are right and stable, these bacteria can work for a long time. Therefore, the circulating water treatment system also includes temperature control system, sterilization system, automatic monitoring system, power and pipeline system. Each subsystem is mutually reinforcing. The best results can be achieved at the lowest cost only when the functions of the subsystems are understood and they can be synchronized at run time.

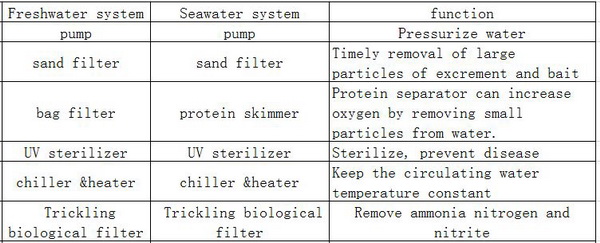

The equipment and functions contained in this system

The equipment can be configured flexibly according to the conditions on the customer's site to minimize the cost of the system.
If the filter sand cylinder in the system is replaced by an automatic roller microfilter, the system will be automated.
If the customer's local temperature is suitable, the system may not have a heating or cooling machine.

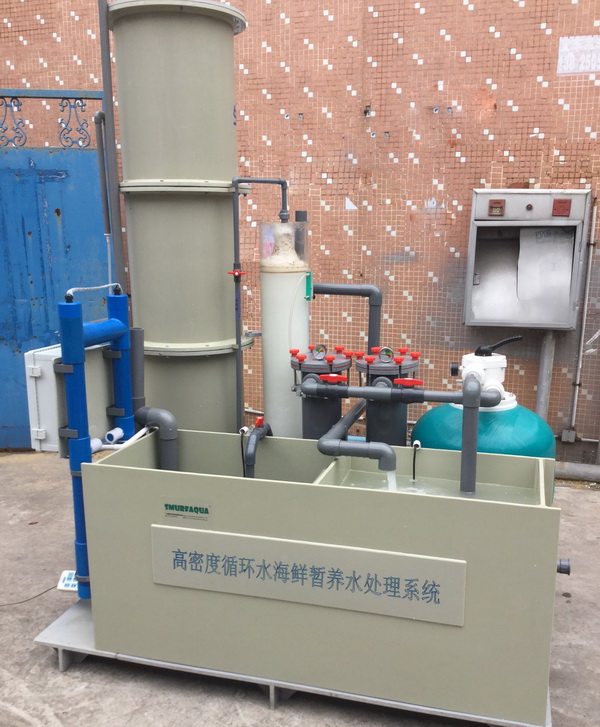

The system can be assembled in lanling factory and shipped as a whole.

Advantages:
1. Circulating water aquaculture can be achieved with high density and high efficiency;
2. Low risk of disease and epidemic diseases;
3. Low water consumption and low electricity consumption;

4. The system equipment has been integrated without installation.

5. Reasonable design and convenient maintenance.
