Air energy chiller and heater

Product manual
The heating and chiller is an automatic thermostat that integrates a heat pump and a chiller. Mainly automatic heating or cooling of circulating water.

The working principle of the heating and chiller is to compress the refrigerant through the compressor, and heat is generated during the compression process. At this point the heat is released into the exchanger, which is an air energy heat pump. After the compressed gas is released, the air absorbs heat and heat is transferred from the exchanger to the refrigerant. At this time, it is an air chiller.

Product advantages
1. The heating and chiller uses the form of air energy to generate energy. The city power is used as energy. The advantage of air energy is that it inputs one degree of electricity and can produce three to five degrees of output energy. Therefore, it is a very energy-saving and environmentally friendly device.
2. The blue and cold water treatment of the heating and chiller uses imported new original scroll compressor as the power source. Environmentally friendly refrigerant. The pure titanium evaporator can really resist acid and alkali corrosion for a long time. Therefore, it can be applied to chemical, electroplating, swimming pool, seawater recirculation and aquaculture.
Evaporator for the heating and chiller (titanium evaporator):

There are protection circuits for starting and stopping. To reduce the failure rate of the machine. The built-in troubleshooting screen makes it easy to determine the machine's point of failure or operational error.
The specific heat of water is relatively large, so when configuring the power of the machine, consideration should be given to the comprehensive factors such as the total amount of water, the temperature difference between the target temperature and the site temperature, and the insulation effect of the space.
Applications
Recirculating aquaculture, factory aquaculture, swimming pool water treatment works, domestic hot water supply, plumbing projects.
The air energy chiller produced by Lanling Water Treatment Equipment is applied to large-scale circulating water treatment:

The circulating water aquaculture uses an air chiller to thermostatically treat the water:

The air energy chiller and the ultraviolet sterilizer are used together in the indoor shrimp RAS:

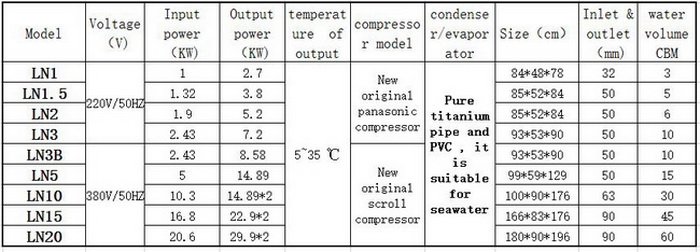

Specifications
